MOPAR Enel X Juice Box Level II EV Home Charging Station

• MOPAR / Enel X Juice Box Level II EV Home Charger
• WiFi/App Enabled
• 40A Hard-Wired or Plug-in Versions Available
• Weatherproof for either indoor or outdoor installation
• Jeep or Chrysler Branded Faceplate
• 25 Foot Cable with J1772 Charging Plug
• Ships within 5-7 business days

TABSTART

Description

Up to 6x faster charging than typical Level I charging options, the Chrysler and Jeep Brand Level II EV Home Charging Station allows a customer to spend less time waiting for an EV to charge and more time enjoying the drive. The easy-to-use, small, lightweight, lockable enclosure’s quick-release mount is weatherproof for either indoor
or outdoor installation. For the smart-home minded, the charging unit includes built-in
WiFi connectivity to control charging anytime, anywhere via a mobile app and web
portal. The smart grid optimization allows customers to reduce energy costs by charging at low-rate times and participate in available programs to further lower the cost of owning and driving an EV.

TABEND

TABSTART

Specification

Output Power - 40A, 4.4 kW at 110  VAC; 9.6 kW at 240 VAC

Input Voltage - Single phase input power: 110 - 240 VAC ~ 60Hz

Input - 2.5-foot input cable with NEMA 14-50 plug,

Output Cable - 25-foot SAE J1772 standard plug

Dimensions - 7.6” (173 mm) x 18.6”(474 mm) x 5.6” (141 mm)

Weight - 15 lbs

Codes and Standards FCC Part 15 Class B, NEC 625 compliant

Warranty - 3-year warranty

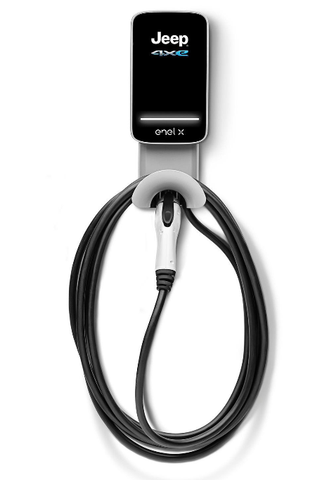

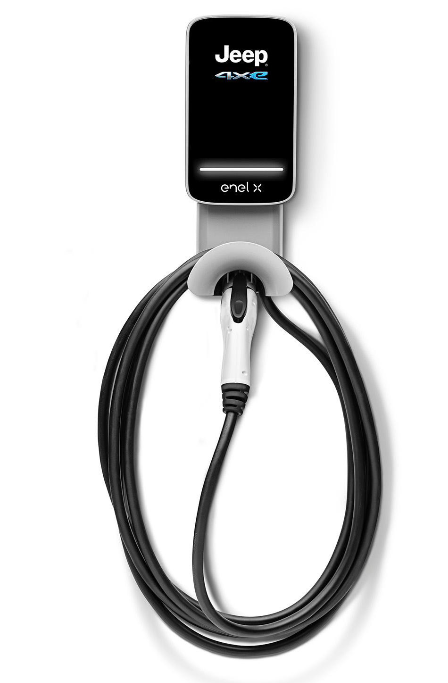

JEEP HARDWIRED SKU: 82216504AA

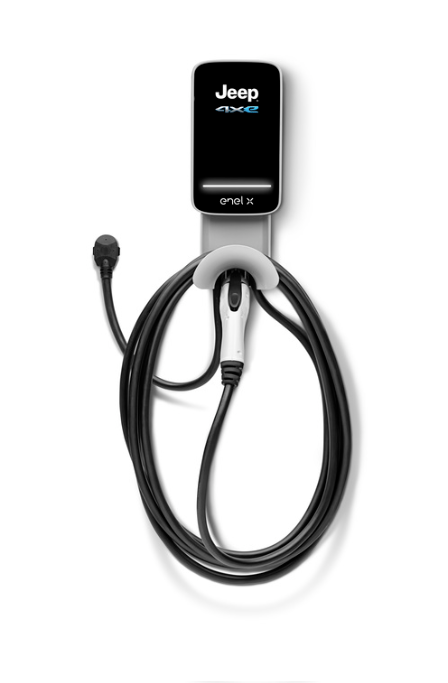

JEEP NEMA 14-50 SKU: 82216505AA

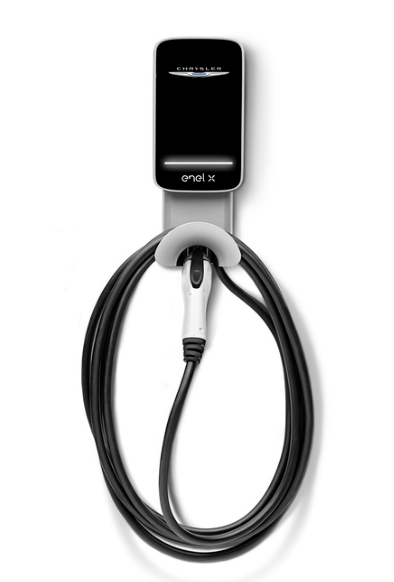

CHRYSLER HARDWIRED SKU: 82216506AA

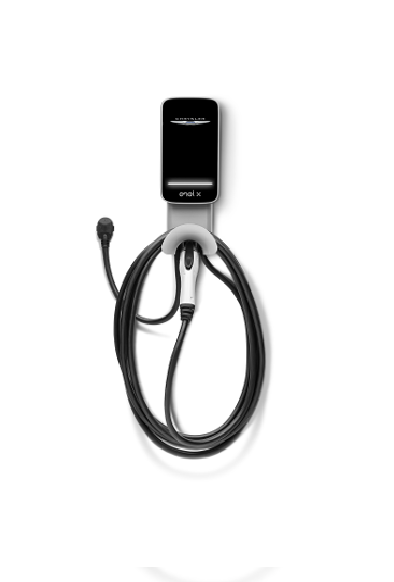

CHRYSLER NEMA 14-50 SKU: 82216507AA

TABEND
