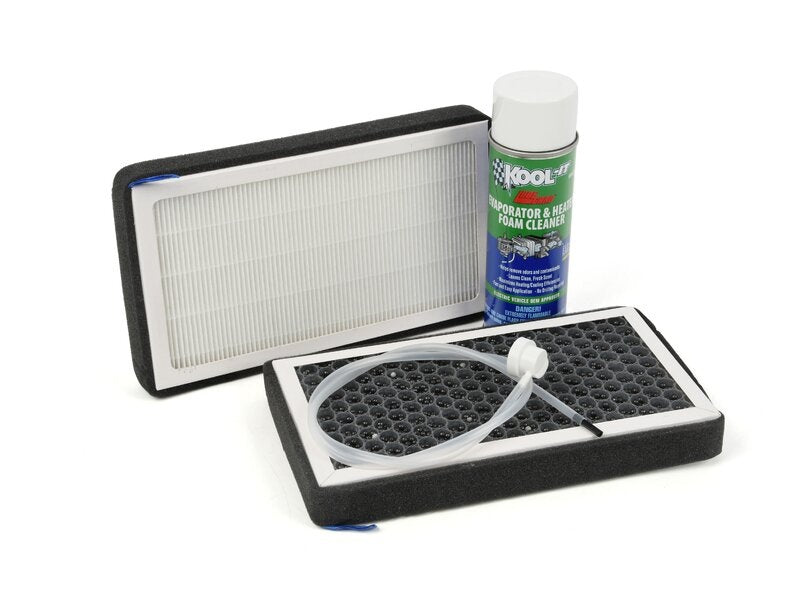

EVANNEX HEPA Cabin Air Filter and Cleaner Kit for your Tesla Model 3 and Model Y ^Sale

• EVANNEX HEPA Replacement Cabin Air filter set and Kool-It Foam Cleaner Kit
• All-In-One kit to service your Tesla's HVAC System
• Kool-It quickly foam cleans your Tesla's HVAC to improve air flow and remove foul smells
• New EVANNEX HEPA Charcoal Cabin Filters to protect the air quality in your Tesla's cabin
• Fits All Tesla Model 3's and Model Y's up to 2024
• Ships Ground Services Only

Description

KOOL-IT Evaporator & Heater Foam Cleaner

• Works in All Tesla Models
• Easy and quick with included nozzle - No Special Tools Required
• Improves air quality
• Maximizes cooling system efficiency
• Keep a clean and healthy environment inside your cabin

EVANNEX HEPA Charcoal Lined Cabin Filter

The EVANNEX Interior Hepa Cabin Air Filter has been designed to fit the needs of all Model 3 and Model Y Owners. Prevent 99.67% of air particles from entering your vehicle. Adding extra protections to your Tesla's cabin.

Upgrade or replace your Tesla Model 3 or Model Y cabin air filter with EVANNEX's  HEPA Cabin Air Filter. A high quality air filter made of HEPA activated carbon that have a unique structure, to reduce the air resistance and maximizes the surface area, enhancing the filtering performance.

Specifications

Specification:

HEPA Replacement Cabin Air filter

Effectively prevent 99.67% of air particles from entering your vehicle. Helping you keep a clean and safe environment inside your vehicle.

Materials: High Quality Air Filter is made with HEPA activated carbon filter

Protection: Effectively prevent 99.67% of air particles from entering your vehicle

Fitment: Designed to fit all Tesla Model 3 and Model Y.

Installation Video

Installation Instructions

1. To replace the cabin filters: Turn off the climate control system.
2. Move the front passenger seat fully rearwards and remove the front passenger floor mat.
3. Use a clip pry tool to carefully release the push clips that secure the front passenger footwell cover to the instrument panel. Then, while supporting the footwell cover, disconnect the two electrical connectors and move the footwell cover aside.
4. Working from top-to-bottom, use a trim tool to carefully release the right side panel from the center console.
5. Remove the T20 screw that secures the cabin filter cover to the heating, ventilation, and air conditioning (HVAC) module, then release the cabin filter cover and move it aside. On some vehicles, the screw is a T20/6mm hybrid fastener. Tabs may also replace the screw: use your index finger and thumb to squeeze the two tabs at the bottom of the cabin filter cover. Tilt the cover outward to remove.
6. Fold the upper cabin filters tab upward and the lower filter’s tab downward.
7. Holding the tab on the upper cabin filter, pull the upper filter out from the HVAC module.
8. Holding the tab on the lower cabin filter, pull the lower filter upwards and then out from the HVAC module.
9. Ensuring that the arrows on both new filters face towards the rear of the vehicle, insert the lower cabin filter into the HVAC module and lower it into place. Then, insert the upper cabin filter above it.
10. Fold the tabs inward so that the cabin filter cover can be installed.
11. Install the cabin filter cover by engaging the lower cover tab then securing the T20 screw or T20/6mm hybrid fastener. Tighten the screw to 1.2 Nm/0.89 ft-lbs. On vehicles with tabs instead of a T20 screw: maneuver the top notch of the cabin filter cover into place, then secure the tabs at the bottom of the HVAC module.
12. Reconnect the two electrical connectors to the components in the front passenger footwell cover, then resecure the cover with the push clips.
13. Align the right side panel with the front and rear locator slots on the center console, then apply pressure until all of the clips are fully secure.
14. Reinstall the front passenger floor mat then move the front passenger seat back into place.
