NeoCharge Smart Splitter for EV Owners ^Sale

$229.95
Regular price ~~$395.10~~

Lifetime Replacement Eligible

Vendor: NeoCharge

Sku: NEO-A-1430

Configuration

Appliance (NEMA 10-30) Appliance (NEMA 14-30)

Hurry, only a few left:

Free Shipping Over $100

Hassle-Free Returns

Lifetime Replacement

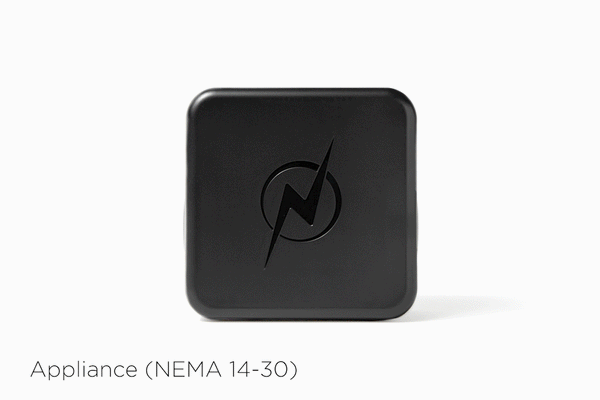

NeoCharge Smart Splitter for EV Owners - Appliance (NEMA 14-30)

$229.95

Configuration

Description

• NEMA-14-50 outlet smart splitter automatically allows you to charge two (2) Teslas.
• 220V appliance outlet smart splitter allows you to share a garage-based appliance outlet with your Tesla.
• Works with all Tesla vehicles.
• Plug and play Smart Splitter (high-power, max. 40 amp, 9.6kWh).
• Portable, allows you to take it with you.
• Versions for NEMA 14-50 and NEMA 14-30/NEMA 10-30 outlets.
• Safe and reliable (UL/cUL rated) .
• No need for an electrician or permits.
• Usually ships the next business day. Available for international delivery to Canada ONLY.

Dual Car

NeoCharge Dual Car Smart Splitter (Charge Two Teslas)

If you’re charging from a NEMA 14-50 outlet and own two (2) Teslas (or one Tesla and another manufacturer’s EV), NeoCharge Dual Car Smart Splitter allows you to plug both vehicles into a single NEMA-14-50 outlet. NeoCharge Dual Car Smart Splitter then automatically coordinates charging of both vehicles. You can also charge both vehicles simultaneously. The Tesla charging cables (UMCs) are both plugged into the splitter at the same time. No plugging and unplugging. No need to install another expensive 240V-50A circuit. No electricians or permits.

Note: It’s also possible to charge both of your Teslas simultaneously if you set the max charging rate to 20 Amps (on a 50 amp circuit). This will result in slower charging for both vehicles but does achieve parallel charging.

Schematic: Dual Car Smart Splitter

Video

Please note: The NeoCharge Dual Car Smart Splitter is compatible with other electric cars too (including all Tesla vehicles). For the purpose of demonstrating the product, this video showcases two electric cars: a Tesla Model 3 and an Audi e-tron EV.

Appliance

NeoCharge Appliance Smart Splitter (Share a dryer outlet)

If you’re currently sharing a 220V appliance outlet (i.e., NEMA 14-30 or NEMA 10-30, see Specifications tab for outlet details) as the power source for your Tesla, you’ll no longer have to unplug your dryer, plug in your Tesla charging cable (UMC), and then when charging is complete, plug your drier back in. Just plug in the NeoCharge Appliance Smart Splitter and both your Tesla and the appliance have access to power. Switching between the appliance and the vehicle occurs automatically.

Alternatively, you may be about to take delivery of a Tesla and have decided not to incur the expense of running a special electrical circuit for car charging. Instead you've decided to use the appliance circuit (i.e., NEMA 14-30/NEMA 10-30, see Specifications tab for outlet details) that is already in or near your garage. The NeoCharge Appliance Smart Splitter allows both your Tesla and the appliance have access to power. Switching between the appliance and the vehicle occurs automatically.

IMPORTANT: The NeoCharge Appliance Smart Splitter plugs directly into either a NEMA 14-30 or NEMA 10-30 appliance outlet and splits the output into two corresponding NEMA 14-30 or NEMA 10-30 outlets—one for your appliance and one for your Tesla. Because the output of the Appliance Splitter is either NEMA 14-30 or NEMA 10-30, you will need an adapter for your Tesla UMC (charging cable) enabling you to adapt the NEMA 14-50 plug on your Tesla UMC to either NEMA 14-30 or NEMA 10-30. You can order an adapter as an add-on with your NeoCharge Appliance Smart Splitter.

Schematic: Appliance Smart Splitter

Video

Please note: This video showcases the basic features of the NeoCharge Appliance Smart Splitter compatible with all electric cars (including all Tesla vehicles). However, for the purpose of this demonstration, the video showcases the product in action with a Nissan LEAF.

Specifications

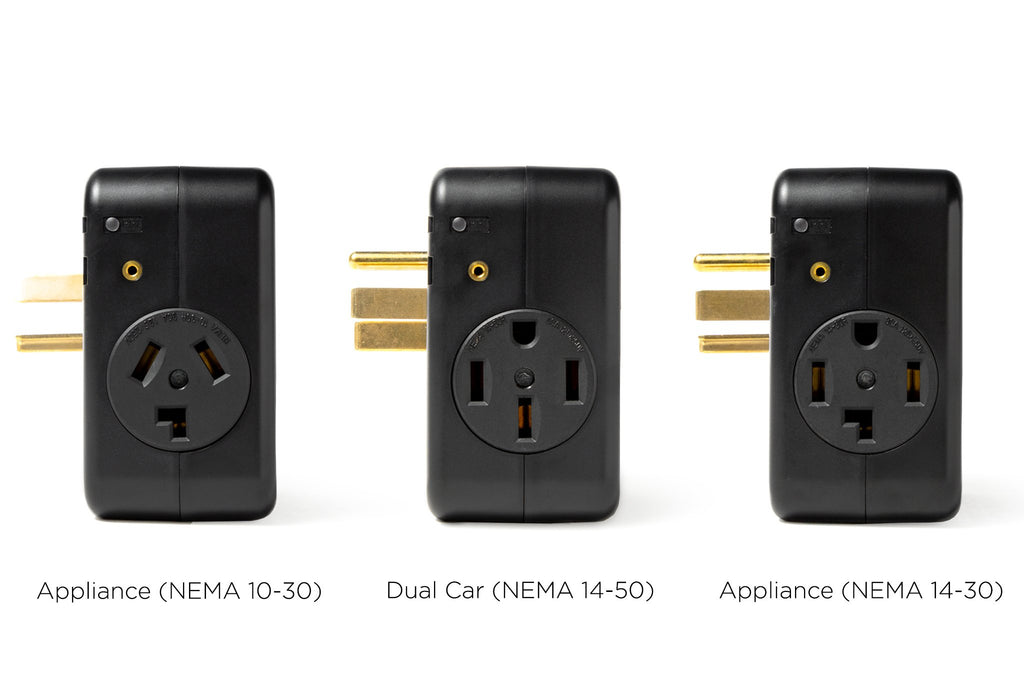

The NeoCharge Smart Splitter is available in two versions: Dual Car and Appliance. Specifications for each are presented below.

NeoCharge Dual Car Smart Splitter

The NeoCharge Dual Car Smart Splitter enables you to plug-in two Teslas (or one Tesla and another manufacturer’s EV) at the same time. The smart splitter automatically switches between vehicles. Fully charge one car at 40Amps/9.6kW and when charging is finished, the Smart-Splitter auto-switches to charging your second vehicle. Specifications for the NeoCharge Dual Car Smart Splitter follow:

NEMA 14-50 Smart Splitter:
Output Power: 40A/9.6kW
Input Voltage: 240 VAC nominal, single phase
Input: NEMA 14-50P
Outputs: 2 x NEMA 14-50R
Weight: 2.5 lbs
Warranty: 2 years

NeoCharge Appliance Smart Splitter

If you use an appliance (e.g., a clothes dryer) outlet as a power source for your Tesla, the NeoCharge Appliance Smart Splitter provides a convenient option. The NeoCharge Appliance Smart Splitter can accommodate either a NEMA 14-30 or NEMA 10-30 appliance outlets. To determine the outlet you have, see the schematic below:

Specifications for NeoCharge Appliance Smart Splitter variants follow:

NEMA 14-30 Smart Splitter:
Output Power: 24A/5.7kW
Input Voltage: 240 VAC nominal, single phase
Input: NEMA 14-30
Outputs: 2 x NEMA 14-30R
Weight: 2.5 lbs
Warranty: 2 years

NEMA 10-30 Smart Splitter:
Output Power: 24A/5.7kW
Input Voltage: 240 VAC nominal, single phase
Input: NEMA 10-30
Outputs: 2 x NEMA 10-30R
Weight: 2.5 lbs
Warranty: 2 years

FAQ

Why do I need a NeoCharge Smart Splitter?

You may be one of the many Tesla owners who now have two Teslas in your garage and hope to charge both. Or you may currently own a single Tesla and want to share an appliance outlet to charge your vehicle. For more details, below are the two "use cases" where the Neocharge Smart Splitter can save you time and money, making at-home charging even more convenient than it already is.

There are two use cases:

Use Case #1: You own two Teslas but have only a single NEMA 14-50 outlet. Installing a second outlet can be very expensive, especially if you have to extend your service box configuration, so you’ve opted not to do that. Instead, you charge both vehicles from the same NEMA 14-50 outlet. You have to physically switch changing cables (UMCs) every time you do this. With the NeoCharge Dual Car Smart Splitter you plug it into the NEMA 14-50 outlet and then plug both charging cables into the splitter. NeoCharge automatically takes care of the rest.

Use Case #2: You charge your Tesla using a 240V appliance (e.g., a clothes dryer) outlet as the power source. You’ve thought about have a NEMA 14-50 circuit installed but it’s quite expensive or you don’t own the property. Using the appliance outlet, you have to unplug the appliance, plug in the Tesla charging cable, initiate charging and when it's done, unplug the charging cable and plug the appliance back in. With the NeoCharge Appliance Smart Splitter, you plug it into the appliance outlet and then plug both the Tesla charging cable and the appliance power chord into the NeoCharge splitter. NeoCharge automatically takes care of the rest.

Is NeoCharge a permanent installation, or is it portable?

NeoCharge can be unplugged and moved to another location with ease. It is not a permanent installation. It weighs only 2.5 pounds.

Do I need an electrician to install NeoCharge?

No. You simply plug NeoCharge into the appropriate outlet. No rewiring or electrician is required.

I have only a single 240V outlet and own two Teslas. How does the NeoCharge Dual Car Smart Splitter allow me to charge two cars at once?

Plug both Teslas’ charging cables (UMCs) into the NeoCharge Dual Car Smart Splitter and the device takes care of the rest automatically. It will charge your first vehicle and when that is completed, it will automatically switch and charge your second vehicle. It can also be used to charge the vehicles simultaneously at a lower amperage.

Is it possible to charge both of my Teslas simultaneously?

It’s possible to charge both of your Teslas simultaneously if you set the max charging rate to 20 Amps using the Tesla interface. This will result in slower charging for both vehicles, but does achieve simultaneous charging.

Can the NeoCharge Dual Car Smart Splitter be used in combination with the Tesla High Power Wall Charger (HPWC)?

No. Because the HPWC is directly hardwired into a 240V electrical circuit, the HPWC can NOT be used in conjunction with NeoCharge.

Can the NeoCharge Appliance Smart Splitter adapt to any appliance outlet?

The NeoCharge Appliance Splitter is available for either a NEMA 14-30 or 10-30 outlet. First determine which outlet you have (see schematic below) and then choose the outlet configuration (i.e., NEMA 14-30 or NEMA-10-30) when you order.

Will I need a cable adapter when I use the NeoCharge Appliance Smart Splitter?

Yes. The NeoCharge Appliance Smart Splitter plugs directly into either a NEMA 14-30 or NEMA 10-30 appliance outlet and splits the output into two corresponding NEMA 14-30 or NEMA 10-30 outlets—one for your appliance and one for your Tesla. Because the output of the Appliance Splitter is either NEMA 14-30 or NEMA 10-30, you will need an adapter for your Tesla UMC (charging cable) enabling you to adapt the NEMA 14-50 plug on your Tesla UMC to either NEMA 14-30 or NEMA 10-30. You can order an adapter as an add-on with your NeoCharge Appliance Smart Splitter.

Will I need a cable adapter when I use the NeoCharge Dual Car Splitter?

No. The NeoCharge Dual Car Spiltter plugs directly into a NEMA 14-50 outlet and splits the output into two corresponding NEMA 14-50 outlets—one for each car. Since the Tesla UMC (charging cable has a NEMA 14-50 plug, you do NOT need an adapter.

Is NeoCharge easy to install?

Simply plug in your Smart Splitter for charging access and you're ready to charge. The Dual-Car Smart Splitter is designed for two NEMA 14-50 charging cables. The NeoCharge Appliance Smart Splitter is designed for either a NEMA 14-30 or 10-30 appliance plug with output to a NEMA 14-50 charging cable plug.

What do you mean when you say that NeoCharge “auto-switches?”

NeoCharge Dual Car Smart Splitter senses when one vehicle has been fully charged and then automatically switches to the second vehicle. NeoCharge Appliance Smart Splitter will automatically switch from charging your vehicle to powering your appliance, if you so choose.

Is NeoCharge intended for installation indoor or can I use it outside?

NeoCharge has been designed for indoor usage ONLY. WARNING: DO NOT attempt to use NeoCharge in an outdoor setting where rain or other elements are present.

If a friend or relative visits, can they use NeoCharge?

Yes. Plug your friends vehicle into NeoCharge and it's good to go.

Is NeoCharge UL/cUL rated?

Yes. NeoCharge is UL/cUL rated and has been designed and built with your safety in mind.

Does NeoCharge Dual Car Smart Splitter indicate which vehicle is currently charging?

Light indicators tell you which car is charging.

How long does it take to receive my order for the NeoCharge Smart Splitter?

The NeoCharge Smart Splitter usually ships within 24 hours of receipt of order. Delivery time depends on your location relative to South Florida and is typically within three (3) days for the continental U.S.

Does the NeoCharge Smart Splitter ships to International destinations?

No. The NeoCharge Smart Splitter ships ONLY to destinations in North America. It is incompatible with electrical outlets outside of North America.
