Description

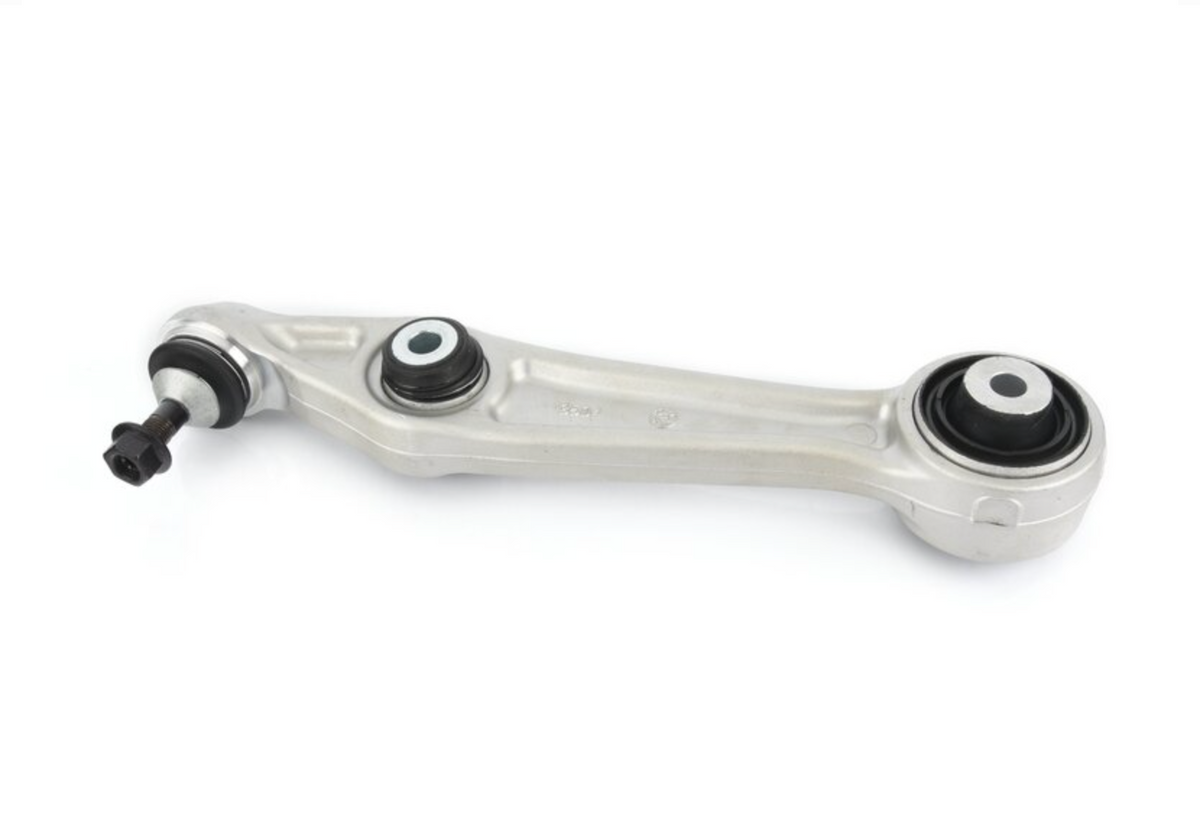

Restore proper front suspension geometry and handling with the MEYLE Front Aft Lower Link, designed as a direct replacement for the factory front suspension aft link on applicable Tesla Model S and Model X vehicles.

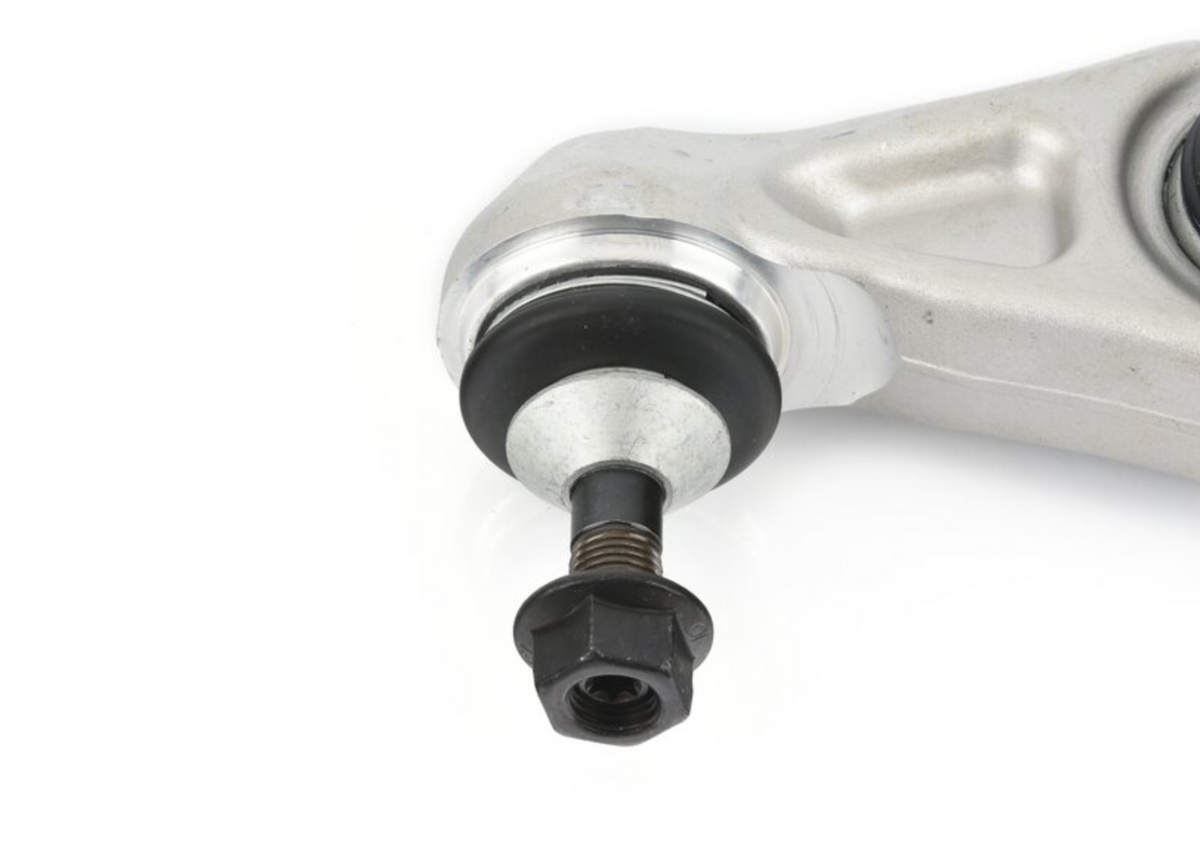

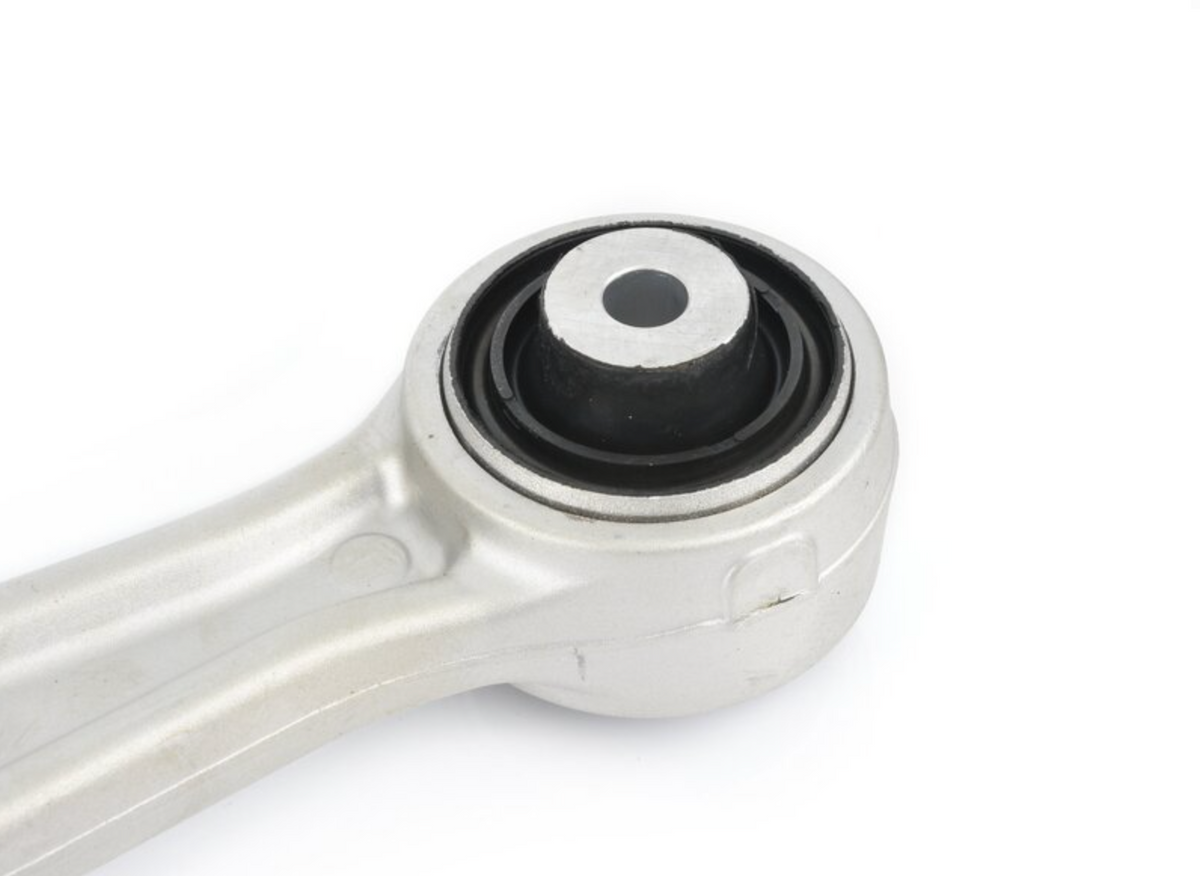

This aluminum control arm is positioned at the front lower rear (aft) position of the suspension and includes an integrated ball joint. It helps maintain proper wheel positioning and suspension geometry as the suspension moves through its range of travel.
The same component is used on both the left and right sides and is sold individually. Two are required per vehicle.
Key Features
- Direct replacement for the front aft lower link
- Fits left or right side
- Aluminum construction
- Integrated ball joint
- MEYLE OE-quality replacement
- Helps restore proper front suspension geometry
- 2 required per vehicle
- Replacement in pairs recommended
- Sold individually
Product Details
| Specification |
Details |
| Brand |
MEYLE |
| MEYLE Part Number |
70-16 050 0002 |
| MEYLE Trade Number |
MCA1395 |
| Tesla OE Number |
1027351-00-C |
| Position |
Front / Lower / Aft (Rear Position) |
| Side |
Left or Right |
| Material |
Aluminum |
| Ball Joint |
Included |
| Length |
348 mm |
| Thread Size |
M14 x 1.5 |
| Required Quantity |
2 |
| Sold |
Individually |
MEYLE 70-16 050 0002 is cross-referenced to Tesla OE 1027351-00-C and several superseding/alternate OE numbers, including 1027351-00-D, 1027351-00-E, 1048951-00-A, 1048951-00-B, and 6007997-00-D.
Fitment
Tesla Model S
- 2012–2021
- Front suspension
- Lower / Aft position
- Left or right side
Tesla Model X
- 2015–2021
- Front suspension
- Lower / Aft position
- Left or right side
The component is listed for both Model S and Model X applications.
Tesla OE Reference Numbers
- 1027351-00-C
- 1027351-00-D
- 1027351-00-E
- 1048951-00-A
- 1048951-00-B
- 6007997-00-D
Important: Because Tesla has used multiple OE revisions, verify the OE number on the original component when possible before ordering.
EVANNEX Ordering Guide
Sold individually — replacement in pairs recommended.
Two front aft links are required per vehicle. The same MEYLE component is used on both the left and right sides.
Replacing one side:
-
1 × MEYLE 70-16 050 0002 — Front Aft Lower Link
- Tesla OE: 1027351-00-C
- Fits either the left or right side
Replacing both sides — Recommended:
-
2 × MEYLE 70-16 050 0002 — Front Aft Lower Links
- Tesla OE: 1027351-00-C
- 1 × Left
- 1 × Right
Important: There is no separate left- or right-side MEYLE part number for this component.
Why Replace the Front Aft Links?
A worn front aft link can contribute to:
- Front-end clunking or knocking
- Excessive suspension movement
- Changes in wheel alignment
- Uneven tire wear
- Reduced steering and handling precision
Installation Note
Professional installation is recommended. After replacing front suspension control arms, a four-wheel alignment should be performed to verify proper suspension geometry and help prevent uneven tire wear. EVANNEX also recommends an alignment following control-arm, bushing, or ball-joint replacement.
Lifetime Replacement Eligible
